Application:
EDZ type electronic lighting telegraph is used in bridge and engine room or bridge
and ecr transfer between main engine control command of the instrument, This series
of products visual appearance, reliable performance, gear configuration agile,
suitable for all kinds of ship's main engine system.

Features:
1. System structure concise
2. Instrument transmission wire less (6 core),
3. Convenient installation
4. Appearance delicate beautiful
5. Long service life

Main performance index:
Adaptive capacity to environment: Accord with Chinese standard, the relevant provisions of the target ship
IP rating: IP22(bridge house instrument) IP44(engine room instrument)
Power and voltage: AC220V/50Hz DC24V(Two groups of power supply switch)
Alarm type: Main power supply of electricity, step out of alarm, wrong to alarm (and to the main switch fit)
Parking file number: 11,13 or as requirement.
Installation type: Vertical, wall, embedded, etc
VDR interface: Digital signal RS485, accord with IEC61162 standard

Model explanation:

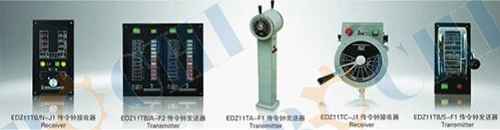

EDZ type telegraph system by sending receiver, receiver transmitter, alarm sound equipment, etc.
Instrument installation form of vertical, desktop and wall, etc., made a file number has a standard and file and 13 files,
according to the number of hosts and divided into single engine telegraph and double engine telegraph.
