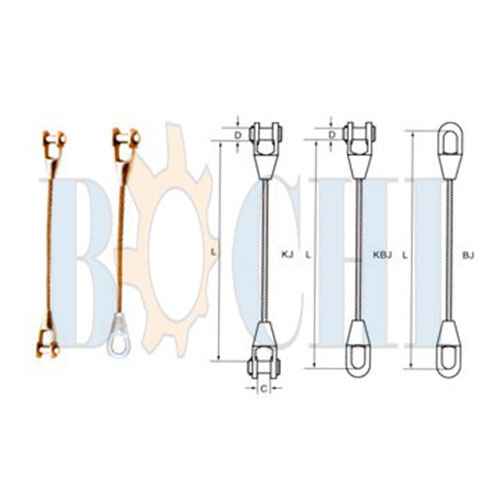

Spel Ter Socket Casting Slings
Steel wirerope standare trquestion is in accordance with GB/T8918-1996 or YB/T5225-93.
Material Request for galvanixation and lube A-1.The intension grade is 1770(The com is IWT)
Φ8-Φ32 Steel wirerope should select the second team 6×19(b) of GB/T8918-1996
Φ36-Φ66 Steel wirerope should select 6×19(b) or 6×37(b) of GB/T8918-1996
Φ71-Φ66 Steel wirerope should select 6×61 of YB/T5225-93
Φ95-Φ106 Steel wirerope should select 8×61 of YB/T5225-93
Moden meatl casting slings have hign etnsile high etnsile rate This kind of sling is very solid and is ofter used in ststic stste sitruation.
Technology & Parameters:
Diameter mm |
Work Load load kg WLL |
Jaw c mm |
D mm |
|
steel core IWRC | hemp core FC |
|||
8 | 730 | 680 | 21 | 21 |
10 | 1150 | 1060 | 21 | 21 |
12 | 1650 | 1530 | 25 | 25 |
13 | 1940 | 1790 | 25 | 25 |
14 | 2240 | 2080 | 32 | 30 |
16 | 2930 | 2710 | 32 | 30 |
18 | 3710 | 3440 | 38 | 35 |
20 | 4580 | 4240 | 44 | 41 |
22 | 5560 | 5130 | 44 | 41 |
24 | 6620 | 6110 | 51 | 51 |
26 | 7760 | 7170 | 51 | 51 |
28 | 9010 | 8330 | 57 | 57 |
32 | 11780 | 10880 | 64 | 64 |
36 | 14900 | 13780 | 64 | 64 |
40 | 18410 | 17020 | 76 | 76 |
44 | 22220 | 20590 | 89 | 89 |
48 | 26500 | 24460 | 89 | 89 |
52 | 30980 | 28740 | 102 | 95 |
56 | 36080 | 33230 | 114 | 108 |
60 | 41380 | 38120 | 114 | 108 |
64 | 47090 | 43420 | 127 | 121 |
66 | 49950 | 46280 | 127 | 121 |
71 | 58300 | 50560 | 133 | 127 |
75 | 65240 | 55250 | 146 | 133 |
80 | 74210 | 62790 | 146 | 133 |
85 | 83790 | 69310 | 159 | 140 |
90 | 93780 | 71590 | 172 | 152 |
95 | 104580 | 88480 | 191 | 178 |
100 | 115800 | 98060 | 191 | 178 |
106 | 127600 | 108200 | 191 | 178 |
