Marine VHF Radio Telephone
Product Name:

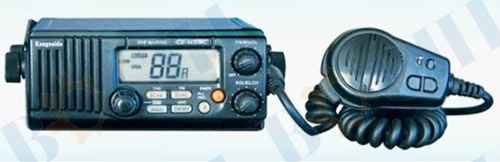

CZ-M59C Marine VHF Radio Telephone
Description of the Product:
CZ-M59C Telephone is an advanced marine VHF radio telephone, featured by a high stability, easy operation, intuitive display and effective communication in terms of application, adopting high-quality components and equipped with waterproofing devices.
Technology & Parameters:
| General Specification | |
| Frequency Range | 156.025~163.275MHZ ; |
| Channel Spacing | 25KHZ |
| Number of Signal Channels | 97 (including 10 meteorological signal channels); |
| Modulation Mode | FM(16K0G3E); |
| Power Supply | DC 13.8V ±15% ; |
| Current Consumption(13.8V) | At the transmitting state:6A/1A; At the standby state:350mA; |
| Frequency Stability | ±10PPm; |
| Range of Operation Temperature | －15℃~＋55℃; |
| Transmitter Specification | |
| Transmitting Frequency | 156.025~157.425 MHZ ; |
| Output Power | ≤25W / 1W |
| Modulation Mode | FM |
| Maximum Frequency Deviation | ±5 KHZ |
| Modulation Sensitivity | ≤17mV |
| Modulation Distortion | ≤7% |
| Receiver Specification | |
| Receiver Frequency | 156.025~163.275 MHZ ; |
| Receiving System | Double-Conversion Super Heterodyne |
| Intermediate Frequency | 1st IF: 21.4 MHZ;2nd IF: 455 KHZ; |
| Reference Sensibility | ≤0.25μV; |
| Threshold Squelch Opening Sensitivity | ≤0.15μV; |
| Deeply Squelch Blocking Threshold | ≥5 KHZ |
| Audio Distortion | ≤7% |
| Adjacent Channel Selectivity | ≥65dB; |
| Spurious Response Immunity | ≥65dB; |
| Inter-modulation Immunity | ≥60dB; |
| Modulation Receiving Bandwidth | ≥2×5 KHZ ; |
