Features:
1. The initiative has call function of the AIS barrier terminal.
2. Can be compatible with the international maritime organization (merchant) AIS system
and existing Marine fishery AIS system to work in the network use.

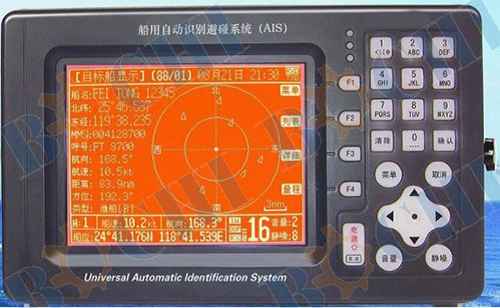

3. The large screen LCD screen shows the ship graphic data and target ship all the static and dynamic information.
4. Has the VHF (156.025-157.425 MHZ) frequency channel 88 call function.
5. Has the distress and various kinds of selective call communication function.
6. In an emergency, realization with merchant international 16 channel site call function.
7. Has the Chinese message sending and receiving display function.
8. With sound and light hint and close to the alarm function.
9. Provide special interface to electronic chart display function for connection.
10. Built-in navigation positioning and navigation operation function.

Main technical parameters:
Radio frequency unit: one transmitter, three receivers.
Frequency range: 156.025-162.025MHZ.
Modulation mode: GMSK 9600pts.
Frequency error:±100hz.
Display screen: FSIN 122mm×92mm×320points×240points.
Working voltage: DC 13.8V±15%.
Working temperature: -10℃±50℃.
Diameter: 235m×145mm×70mm.
Net weight: 3000g(±2%).

AIS receiver:
Sensitivity: -107dBm,-77dBm ,70db ,70db(error rated≤20%).
VHF communication:
Frequency range: 156.025~157.425MHz.
Modulation mode: FM(16KOG3E)DSC(KOG28).
Transmitted power: ≤25W.
Modulation limiting: ≤5KHz.
Receive sensitivity:≤0.25 uV (12dbSINDA).
Audio output: ≥2W(8Ω).
