Stainless Steel Stop Valve



Technology & Parameters:

Part name CF8 Series CF3Series CF8M Series Line CF3M Series Line WCB Series
Body / Bonnet CF8 CF3 CF8M CF3M WCB
Valve CF8 CF3 CF8M CF3M WCB
Stem F301 F3011 F316 F3161 1Cr13
Packing PTFE Weave PTFE Weave PTFE Weave PTFE Weave Graphite
Gasket PTFE+304 PTFE+304L PTFE+316 PTFE+316L Graphite+304L
Gland CF8 CF3 CF8M CF3M WCB
Packing Pressure Ring 304 304L 316 316L 1Cr13
Bolt A193-B8 A193-B8 A193-B8M A193-B8M 35CrMoA
Screw Nut A194-8M A191-8M A191-8M A191-M 45

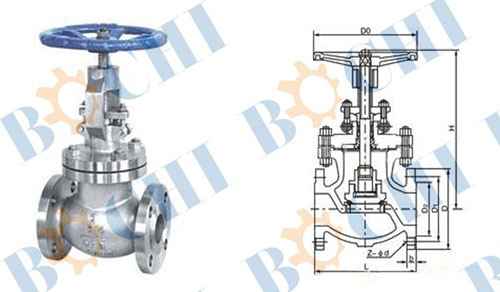

Type Specification Dimension(mm)
Inch DN L D DL D2 b Z-Фd H DO
041W-150Lb 1/2'' 15 108 89 60.5 35 12 4-Ф15 200 100
3/4'' 20 117 98 70 43 12 4-Ф15 205 120
1'' 25 127 108 79.5 51 12 4-Ф15 220 140
11/4'' 32 140 117 89 64 13 4-Ф15 240 150
11/2'' 40 165 127 98.5 73 15 4-Ф15 260 160
2'' 50 203 152 120.5 92 16 4-Ф19 295 220
21/2'' 65 216 178 139.5 105 18 4-Ф19 325 220
3'' 80 241 190 152.5 127 19 4-Ф19 360 240
4'' 100 292 229 190.5 157 24 8-Ф19 420 280
5'' 125 356 254 216 186 24 8-Ф22 460 350
6'' 150 406 279 241.5 216 26 8-Ф22 500 400
8'' 200 495 343 298.5 270 29 8-Ф22 550 450
10'' 250 622 406 362 324 31 12-Ф25 658 500
12'' 300 698 483 432 381 32 12-Ф25 850 550
