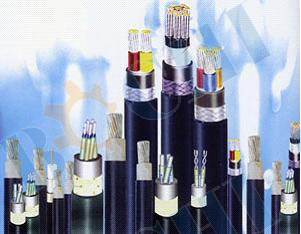

Military and Ship Communication Cable
Scope of applications:
The product uses in the ships and the ships telecommunication, the electronic accounting machine, in the information processing equipment signalling and the control.
Standards implemented:
MIL-C-24643 or GJB1916-94
Model:
Model specifications, Combustion and Rated voltage
| Models | Combustion | Core number | Nominal sectional area (mm2) | Rated Voltage (KV) | Temp.℃ |
| JHVV80, JHVV90, JHJV82, JHVV92 JHVVP80, JHVVP90, JHVVP82, JHVVP92 | DA SA NA | 1X2-37X2 | 0.12-0.75 | 0.25 | V: 70 J: 85 YJ: 85 |
| JHYJV80, JHYJV90, JHYJV82, JHYJV92 JHYJVP80, JHYJVP90, JHYJVP82, JHYJVP92 | 1X2-24X2 | 1 | |||
| JHJV80, JHJV82, JHJV90, JHJV92 JHJVP80, JHJVP90, JHJVP82, JHJVP92 | |||||
| JHEP85, JHEPJPSZP, JHEPJ, JHEPJ80 JHEPJ90, JHEPJ85, JHEPJ95, JHEPJP JHEPJP80, JHEPJP90, JHEPJP85 JHEPJP95, JHEPJR, JHER85, JHEZP85 JHEPJZP, JHEPJZP80, JHEPJZP90 JHYJP85, JHYJPJPSZP, JHYJPJ JHYJPJ80, JHYJPJ90, JHYJPJ85 JHYJPJ95, JHYJPJP, JHYJPJP80 JHYJPJP90, JHYJPJP85, JHYJPJP95 JHER85, JHYJR85, JHYJZP85 JHYJPJZP, JHYJPJZP80, JHYJPJZP90 | SC NSC | 1X2-50X2 2-61 | 0.30 0.60 1.0 | 85 |
Product descriptions and Codes
| Codes | Definition | Codes | Definition |
| D | Combustion for single cable | A | have smoke, acidity and toxicity |
| S | Combustion for bunched cable | B | low smoke,low acidity,low toxicity |
| N | Fire-proof(Combustion for single cable) | C | Halogen free,low smoke,low toxicity |
| Codes | Insulation | Codes | Inner- sheath | Codes | Armoring | Codes | Outer sheath | Codes | Characteristic |
| J,YJ | XLPE Insulation | V | Polyvinyl-chloride sheath | 8 | Tinned Cu wire woven | 0 | NO-Outer sheath | P | Line core screen |
| E | EP-rubber insulated | PJ | Cross-linked polyolefin sheath | 9 | Galva-nizes Steel wire woven | 2 | Polyvinyl chloride sheath | ZP | Collect-ively shield |
| V | PVC Insulation | - | - | - | - | 5 | Cross-linked polyolefin sheath | SZP | Double Collect-ively shield |
| - | - | - | - | - | - | - | - | R | Soft |
