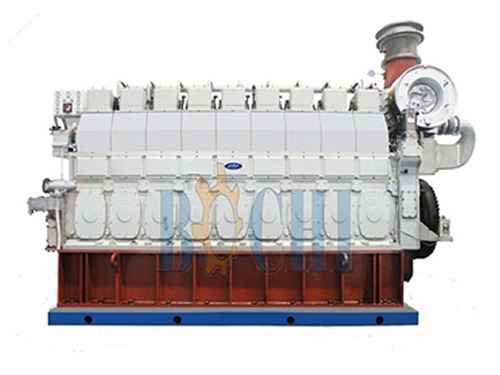

BMMPP DEC9250 Series Air Motor Starting Powerful Marine Diesel Engine
Technology & Parameters:
| Model | Rated speed | Continuous output | Mean eff. Pressure | Mean piston speed |
| LC9250ZLC | 825 | 1912 | 1.967 | 8.8 |
| LC9250ZLC-1 | 750 | 1645 | 1.802 | 8 |
| Main Data | ||
| Number of cylinder | 9 | |
| Bore | mm | 250 |
| Stroke | mm | 320 |
| Compression ratio | 12.5 | |
| Displacement/cylinder | L | 15.7 |
| Max. combustion pressure | MPa | 14 |
| Spec. fuel oil consumption | g/(kW·h) | 198 |
| Spec. lub oil consumption | g/(kW·h) | 1 |
| Height of lifting piston from crankshaft(D) | mm | 2010 |

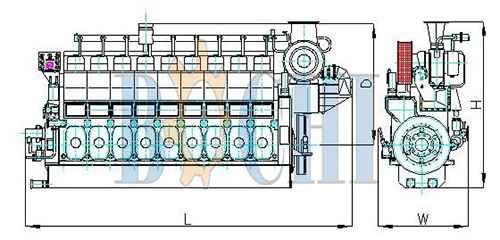

| Overall dimensions(L×W×H) | mm | 5680×1500×2990 |
| Net weight | t | 15.5 |
| The main data of left engine is same with right engine in every model engine. | ||
| Rotation direction of crankshaft: The left engine resolves right, the right engine resolves right to look from the flywheel side to the free side, to turn right is clockwise. | ||
| The left engine resolves left, the right engine resolves left to look from the flywheel side to the free side, to turn left is counter-clockwise. | ||
| Starting method: Air motor starting. | ||
